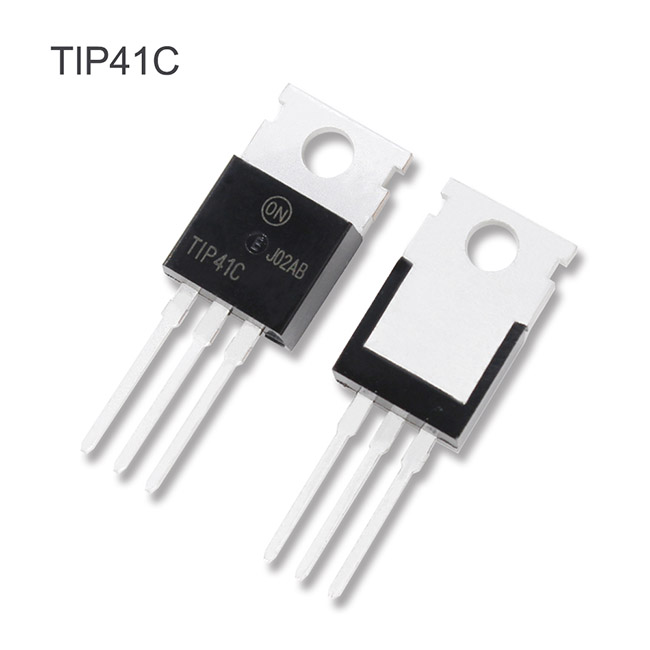

TIP41C

Price $ 0.1100
1+ $ 0.1100
10+ $ 0.1038
100+ $ 0.0979
500+ $ 0.0924
1000+ $ 0.0871
Manufacturer ON
PDF File Download
Quantity
pcs (Total : 4782 pcs)
Manufacturer:ON
Product Category:Transistors (BJT) - Single
Series:500V Transistors
Packaging:Bulk  Alternate Packaging
Part-Aliases:TIP41C_NL
Unit-Weight:0.211644 oz
Mounting-Style:Through Hole
Package-Case:TO-220-3
Mounting-Type:Through Hole
Supplier-Device-Package:TO-220-3
Configuration:Single
Power-Max:2W
Transistor-Type:NPN
Current-Collector-Ic-Max:6A
Voltage-Collector-Emitter-Breakdown-Max:100V
DC-Current-Gain-hFE-Min-Ic-Vce:15 @ 3A, 4V
Vce-Saturation-Max-Ib-Ic:1.5V @ 600mA, 6A
Current-Collector-Cutoff-Max:700μA
Frequency-Transition:3MHz
Pd-Power-Dissipation:65 W
Maximum-Operating-Temperature:+ 150 C
Minimum-Operating-Temperature:- 65 C
Collector-Emitter-Voltage-VCEO-Max:100 V
Transistor-Polarity:NPN
Collector-Emitter-Saturation-Voltage:1.5 V
Collector-Base-Voltage-VCBO:100 V
Emitter-Base-Voltage-VEBO:5 V
Maximum-DC-Collector-Current:6 A
Gain-Bandwidth-Product-fT:3 MHz
Continuous-Collector-Current:6 A
DC-Collector-Base-Gain-hfe-Min:15
DC-Current-Gain-hFE-Max:75
