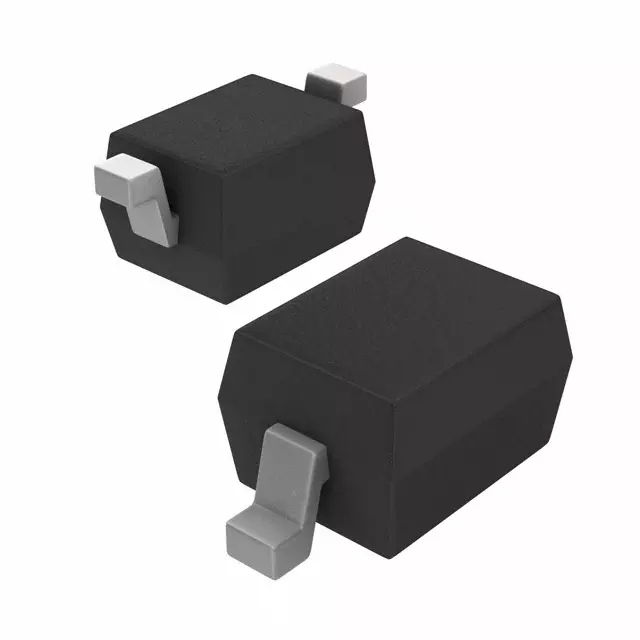

BAT54WS-7-F

Price
1+ $ 0.0000
10+ $ 0.0000
100+ $ 0.0000
500+ $ 0.0000
1000+ $ 0.0000
Manufacturer Diodes Incorporated
PDF File Download
Quantity
pcs (Total : 5271 pcs)
Manufacturer: Diodes Incorporated
Product Category: Diodes, Rectifiers - Single
Series: BAT54W
Product: Schottky Diodes
Packaging: Digi-ReelR Alternate Packaging
Unit-Weight: 0.000173 oz
Mounting-Style: SMD/SMT
Package-Case: SC-76, SOD-323
Technology: Si
Mounting-Type: Surface Mount
Supplier-Device-Package: SOD-323
Configuration: Single
Speed: Small Signal =
Diode-Type: Schottky
Current-Reverse-Leakage-Vr: 2μA @ 25V
Voltage-Forward-Vf-Max-If: 1V @ 100mA
Voltage-DC-Reverse-Vr-Max: 30V
Current-Average-Rectified-Io: 100mA
Reverse-Recovery-Time-trr: 5ns
Capacitance-Vr-F: 10pF @ 1V, 1MHz
Operating-Temperature-Junction: -65°C ~ 150°C
Pd-Power-Dissipation: 200 mW
Maximum-Operating-Temperature: + 125 C
Minimum-Operating-Temperature: - 65 C
Vf-Forward-Voltage: 1 V
Ir-Reverse-Current: 2 uA
If-Forward-Current: 0.1 A
Vrrm-Repetitive-Reverse-Voltage: 30 V
Ifsm-Forward-Surge-Current: 0.6 A
trr-Reverse-Recovery-time: 5 ns
